MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

Brand Name : Xrido

Model Number : 1600

Certification : CE ISO TUV

Payment Terms : Negotiable

Delivery Time : 2-30 Working Days

place of origin : Henan, China

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Engine, Bearing

brand name : Xrido

warranty : 1 Year

material / metal processed : Stainless Steel, Brass / Copper, Alloy, Carbon Steel, Aluminum

key selling points : Automatic

Name : Waste Palstic Crushing

Keyword : Double Shaft Scrap Metal Recycling

Final product : 1-10 Cm

Color : Customized Color

Advantage : High Efficiency Low Energy Consumption

Capacity : 300-22000 Kg/hour

Type : Environment-friendly

Material Processed : PE Film PP Woven Bags

After-sales Service Provided : Service Machinery Overseas

Condition : New

Warranty of core components : 1 Year

Applicable Industries : Building Material Shops, Manufacturing Plant, Farms

Showroom Location : Brazil

Contact Now

MRF Shredder Machines for Material Recovery Facilities Waste Shredder Machine For MRF Plant Solid Waste Displose Machine
Product Introduction:

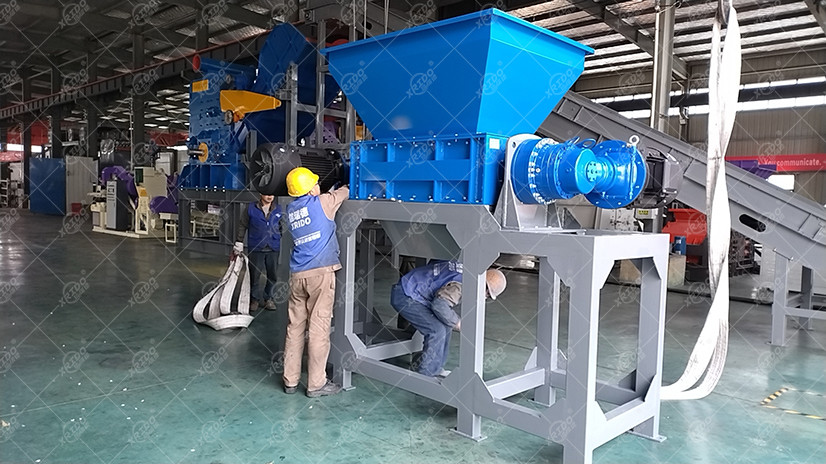

The shredder in the MRF (Material Recycling Plant) is the core equipment in the pre-processing stage, which is mainly used to break large and complex recyclables into small pieces of uniform size, laying the foundation for subsequent sorting and purification. MRF shredder is a mechanical equipment used in materials recovery facilities (Materials Recovery Facility, referred to as MRF). It is mainly used to shred various recycled materials to reduce their size for subsequent storage, transportation, classification and reuse.

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

Working principle of MRF shredder:
Material grabbing and feeding: The grab crane feeds the mixed materials (such as domestic garbage, industrial garbage, plastics, waste cartons, plastic barrels) into the feed port, and the push plate pushes the materials to the knife shaft with constant pressure;

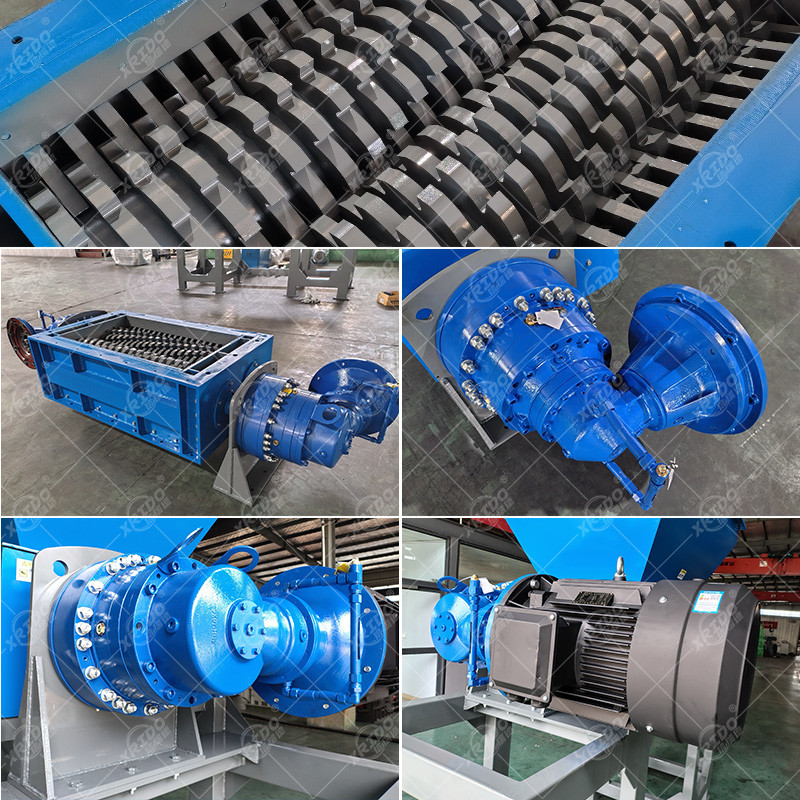

Tearing and shearing: The two knife shafts rotate in opposite directions, and the blades clamp the materials through the "biting" action, and crush them by shearing force, tearing force and extrusion force;
Repeated crushing and screening: The crushed materials are filtered through the screen, and the large particles are grabbed and crushed by the knife shaft again until they meet the size requirements and are discharged from the discharge port.

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

The Advantages of the MRF shredder:
Adapt to a variety of material characteristics: It can process materials of different hardness and toughness such as plastics, metals, wood, fibers, and electronic waste. Through composite principles such as shearing, tearing, and extrusion, it can achieve the crushing of complex materials, such as tearing and crushing of waste tires or shearing and crushing of hard plastics.
Large and uniform crushing ratio: It can quickly crush large-sized materials into smaller particles (such as a few centimeters to more than ten centimeters), and the output particle size is controllable. By adjusting parameters such as tool gap and screening system, it can meet the particle size requirements for subsequent classification or reuse, and reduce the impact of material size differences on subsequent processes.
High processing efficiency: The dual-axis or multi-axis structure with a high-power power system can achieve continuous operation, with an hourly processing capacity ranging from several tons to tens of tons, which is suitable for material recycling facilities of different sizes and improves the overall processing capacity.

Application scenarios of MRF shredder:
Urban domestic waste treatment: various wastes in domestic waste, such as plastics, paper, metals, wood, etc., can be crushed to reduce the volume of garbage, facilitate subsequent classification, landfill, incineration or recycling, and improve garbage treatment efficiency.
Industrial waste treatment: Various scraps and waste materials generated in the industrial production process, such as plastic scraps, metal scraps, waste rubber products, etc., can be recycled and reused after being crushed by MRF shredders, reducing the production costs of enterprises and reducing pollution to the environment.
Electronic waste treatment: With the replacement of electronic products, the amount of electronic waste is increasing. MRF shredders can crush and separate plastic shells, circuit boards, wires and cables in electronic waste, which is conducive to the subsequent recovery and extraction of valuable materials such as precious metals and rare metals.
Waste textile treatment: Crushing textiles such as waste clothing and bedding can be used to produce recycled fibers, filling materials or other raw materials for textile products, realizing the recycling of waste textiles and reducing the pressure of textiles on the environment.
MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

Final Products:

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

The MRF shredder converts mixed recyclables into fragments suitable for sorting through the mechanical principle of "shearing - tearing - screening", and its working efficiency directly affects the recycling effect of the subsequent whole process. Single-axis, double-axis, and four-axis shredders work together according to the characteristics of the materials, and cooperate with intelligent control systems to achieve efficient crushing. They are the key starting point for the MRF factory to transform from "mixed materials" to "pure recycled materials". With the diversification of recycled materials, shredders will be upgraded to "high torque + low energy consumption + adaptive crushing" in the future, such as integrating AI algorithms to automatically identify material hardness and adjust crushing parameters, further improving the intelligence level of the pre-processing link.

Process flow:

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

Case:

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine

MRF Shredder Machines For Material Recovery Facilities Waste Shredder Machine MRF Plant Solid Waste Displose Machine
