Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Henan Xrido Environmetal Protection Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Brand Name : Xrido

Model Number : Customizable

Certification : CE ISO TUV

Payment Terms : Negotiable

Delivery Time : 2-30 Working Days

place of origin : Henan, China

type : Refuse Collector

warranty : 1 Year

material : Export Wooden Packing

machinery test report : Provided

video outgoing-inspection : Provided

core components : Pressure vessel, motor, Bearing, Gear, PLC, Pump, Engine

Power : Custom

Product name : Refuse Derived Fuel RDF Briquette Press Machine

Application : Recycling and Utilization of Waste Wood

After Warranty Service : Field Maintenance

Advantage : Easy Operation High Efficiency

Briquette size : 8-75mm

Usage : Make Fuel Briquettes

Production Capacity : 100%

Voltage : Country Voltage

Contact Now

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Products Description
The combustible briquetting machine belongs to the category of biomass energy utilization equipment or industrial solid waste treatment equipment. It converts loose combustibles (such as agricultural and forestry wastes, industrial organic wastes, domestic organic wastes, etc.) into high-density (usually 1.0-1.5g/cm³) and stable calorific value fuel blocks through physical compression (cold pressing or hot pressing). It is widely used in boiler combustion, biomass power generation, home heating and other fields, and is a key equipment for realizing "waste energy".

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Product Features
Refuse-derived fuel (RDF) technology is a technology that crushes and sorts domestic and industrial waste to remove non-combustible materials such as metals, glass, and sand from the garbage. After crushing and drying the combustible materials in the garbage (such as plastics, fibers, rubber, wood, food waste, etc.), additives are added, and densely molded to finally make solid fuel.
Model
Power(KW)
Number of ring die holes
Capacity(t/h)
Dimensions(mm)
YDRK-54
90
54
1.5-2.5
2200×1100×1700
YDRK-72
132
72
3-4
3230×2200×2000
YDRK-120
185
120
4-5
4055×2836×2380

Applicable raw material range​
The raw materials of the combustible briquetting machine must have a certain degree of combustibility (low calorific value is usually ≥3000kcal/kg), and common types include:

​Agricultural and forestry waste: straw (corn stalks, wheat stalks, rice stalks), rice husks, wood chips, sawdust, fruit tree branches, bark, sugarcane bagasse, etc.;
​Industrial organic waste: wine lees, medicine residues, papermaking black liquor residues, food processing waste residues (such as fruit shells, fruit cores), textile waste fibers, etc.;
​Domestic organic waste: kitchen waste (needs pretreatment dehydration, impurity removal), peels, fallen leaves, etc. (needs to control the impurity content to avoid corrosion of equipment);
​Low-grade fuel: some coal gangue, oil shale (needs to be crushed to a suitable particle size and then briquette to improve combustion efficiency).

Product Application

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Key performance characteristics of Rdf briquetting machine​:

Wide adaptability of raw materials: can handle a variety of combustible wastes, and adapt to different raw material characteristics (such as high moisture, high viscosity) by adjusting the mold size, pressure parameters or adding impurity removal devices.

High molding density: The density of the molding block can reach 1.0-1.5g/cm³ (the density of loose raw materials is only 0.1-0.2g/cm³), the volume is reduced by 5-10 times, and the transportation efficiency is greatly improved (such as the freight per ton of straw after briquetting is reduced by more than 70%).
​Combustion performance optimization​: During the compression process, part of the lignin softens and bonds, and the calorific value of the molded block can reach 3500-5000kcal/kg (close to standard coal), and the combustion is continuous and stable (no "floating ash" phenomenon of loose raw materials), which is suitable for industrial boilers, power plants and other scenarios.
​High degree of automation​: High-end models are equipped with a PLC control system, which can automatically adjust the feeding speed, pressure, and temperature, reduce manual intervention (only 1-2 people are required to operate), and reduce labor intensity.
​Environmental protection and energy saving​: The equipment has good sealing performance, and the dust emission complies with the "Comprehensive Emission Standards for Atmospheric Pollutants"; some models use waste heat recovery technology (such as using the waste heat of the molded block to dry the raw materials) to reduce energy consumption.

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line
Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

​Raw material pretreatment requirements:

Water content: usually controlled at 12%-20% (depending on the equipment design, too high will lead to difficult molding or fuel mold, too low will rebound easily during compression);
Particle size: generally needs to be crushed to ≤50mm (some equipment requires ≤20mm), which can be pre-processed by crusher or pulverizer;
Impurities: hard objects such as metal, stone, glass, etc. need to be removed (especially hydraulic equipment, to avoid damage to the mold).

Waste to Biomass/RDF/SRF/TDF Briquette System:

The solid waste disposal system can be customized according to the actual materials.

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

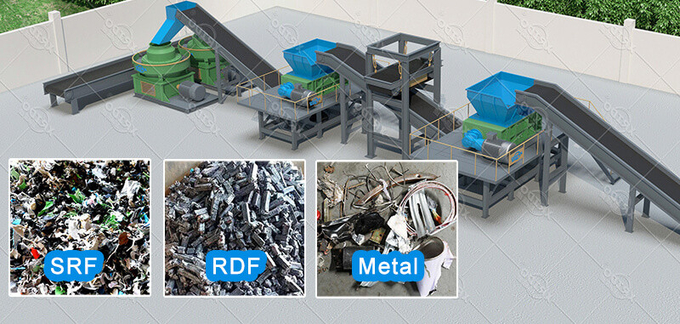

MSW to RDF briquette Plant Industrial Waste to RDF briquette Plant

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

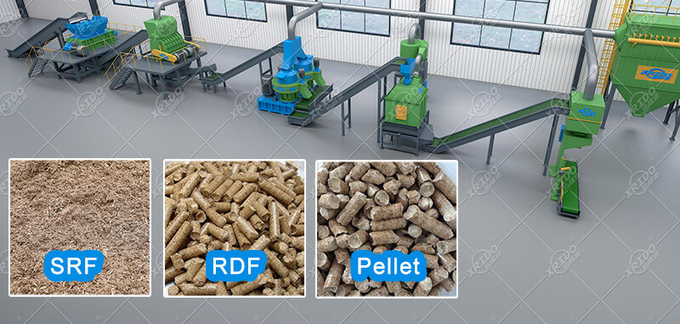

Biomass pellet/briquette Plant Waste Tire Disposal System
Case:

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line

Municipal Garbage Wood Sawdust Briquette Press Cardboard Clothing Textile Paper Rdf Briquetting Machine Line
